Universal two-in-one burning/testing robot, supporting pallet, tape, all IC packaging burning/testing/conversion packaging functions of three packaging materials.
Taping and tray adopt independent separable system. As long as the equipment structure supports, it can be mounted for burning test, and it has strong expansibility.
High-definition up and down CCD computer image display, automatic X, Y, theta parameter adjustment, automatic offset correction data.
1-32 jobs are optional, with output value of 1000 UPH/PCS per hour.
The output value is stable and the quality passes through. It is suitable for multi-category IC burning with strong scalability.
This product is mainly used for testing/packaging conversion/identification of IC (integrated circuit)
IC TYPE：MCU,FLASH,EMMC,NAND FLASH,EPROM,Wait...
IC ENCAPSULATION：SOP,SSOP,TSSOP,MSOP,QFP,QFN,BGA,TQFP,LQFP,Wait...
IC Packing：Tray、Tape
Technical specifications
Product model | ZH806-A1 | Machine architecture | Cantilever type |
Fastest speed | 1000±100CPH | Accuracy of fetching and placing repetition | +/-0.02mm |
Travel range | X630mmY400mmZ50mm | Machine size | 1100×900×1400mm |
weight | 130KG | Soket Fetch and release mode | Z axis press |
Suction nozzle | Single suction nozzle rotatable | Control system | PLC |
Workstation | 0-32 Workstation optional | Power/Gas Source | 220V,50Hz/0.5MPa |
Suitable for IC packaging | SOP/QFN/BGA/QFP/... | Suitable for programming | AP8000、204、7500、6104.... |
Functional characteristics

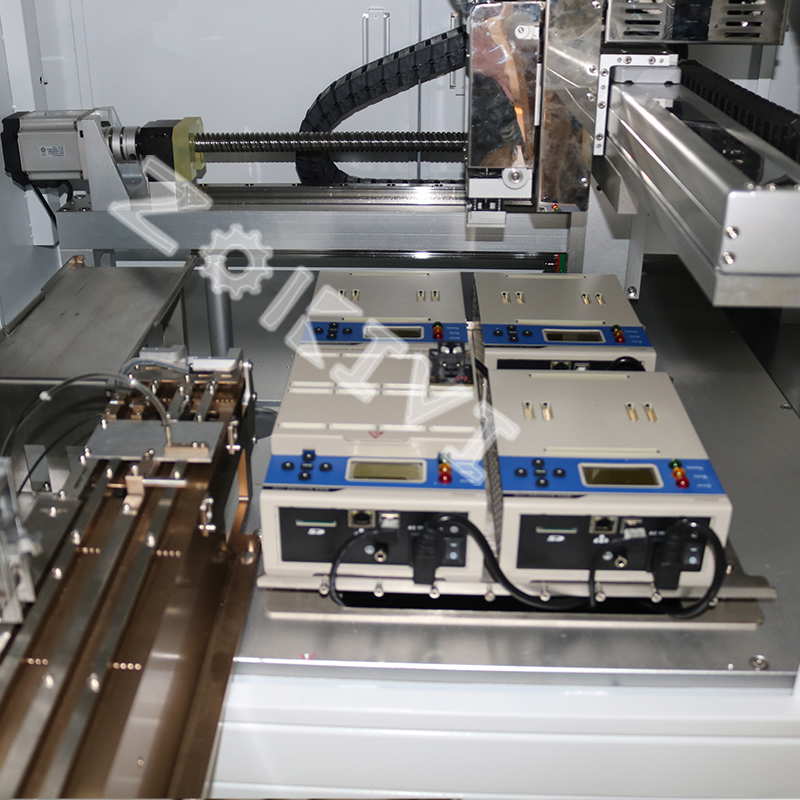

★TP200 Ground-type Tape-making and Burning System
1. Support the automatic adjustment of the track width of the carrier belt, adjustable range of 8-32 mm, to meet the burning requirements of the integration of input and output. Save labor costs. Improve the burning efficiency.
2. It is easy to move and put on separate models, and can be used on other models as long as the mesa structure is supported.
★TR200 tray automatic loading and unloading burning system
1. Pallet packaging can realize automatic feeding, feeding, no need for human intervention, while supporting the burning while processing the two do not interfere with each other, a one-time feeding of 20 plates.
2. It is easy to move and place by using independent and separable models. It can be used on other models as long as the mesa structure is supported.
Vision system
