    ZH808-H

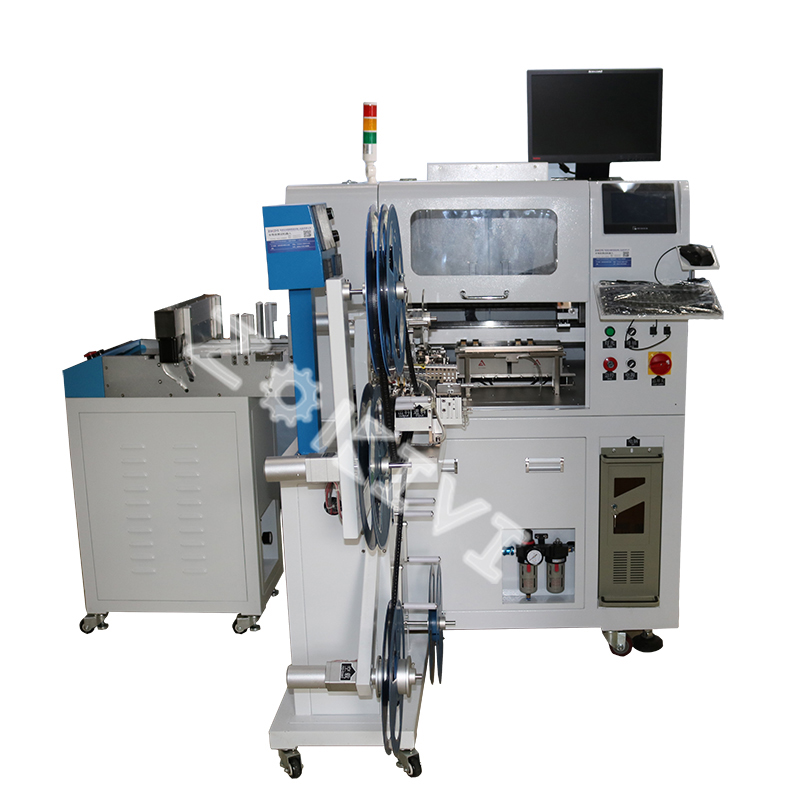

    Three-in-one ten-thousand automatic burner supports pallet/tape/tube packaging, all IC packaging burning/testing/conversion packaging functions of three packaging materials. Taping and tray adopt independent separable system. As long as the equipment structure supports, it can be mounted for burning test, and it has strong expansibility. High-definition up and down CCD computer image display, automatic X, Y, theta parameter adjustment, automatic offset correction data. 1-32 jobs are optional, with output value of 1000 UPH/PCS per hour.

    Details

    This product is mainly used for testing/packaging conversion/identification of IC (integrated circuit)


    IC TYPEMCU,FLASH,EMMC,NAND FLASH,EPROM,Wait...

    IC ENCAPSULATIONSOP,SSOP,TSSOP,MSOP,QFP,QFN,BGA,TQFP,LQFP,Wait...

    IC PackingTrayTubeTape


          Technical specifications


    Product model

    ZH808-H

    Machine architecture

    Cantilever type

    Fastest speed

    1000±100UPH/PCS

     Accuracy of fetching and placing repetition

    +/-0.02mm

    Travel range

    X630mmY400mmZ50mm

    Machine size

    1100×900×1400mm

    weight

    130KG

    Soket Fetch and release mode

    Cylinder Pressure + Turn-over

    Suction nozzle

    Single suction nozzle rotatable

    Control system

    PLC

    Workstation

    0-32 Workstation optional

    Power/Gas Source

    220V,50Hz/0.5MPa

    Suitable for IC packaging

    SOP/QFN/BGA/QFP/...

    Suitable for programming

    AP800020475006104....



          Functional characteristics


    TP200 Ground-type Taping and Burning System

    1. Support the automatic adjustment of the track width of the adapted carrier belt.

    The adjustable range is 8-32mm to meet the burning requirement of the integration of input and output.

    Save labor costs. Improve the burning efficiency.

    2. Adopt the independent and separable type, which is convenient for handling and placing.

    As long as the platform structure supports, it can be used on other models.




    TR200 tray automatic loading and unloading burning system

    1. Pallet packaging can realize automatic feeding, feeding, without human intervention, supporting burning while dotting.

    2. It is easy to move and place by using independent and separable models. It can be used on other models as long as the mesa structure is supported.



    6-in-8-out piping recording system

    1. Supports putting 6 pipes into 8 pipes at one time and 1 and NG pipes out of 8 pipes at one time. Both of them do not interfere with each other and can feed 20 plates at one time.

    2. Fast and smooth burning efficiency








          vision system
