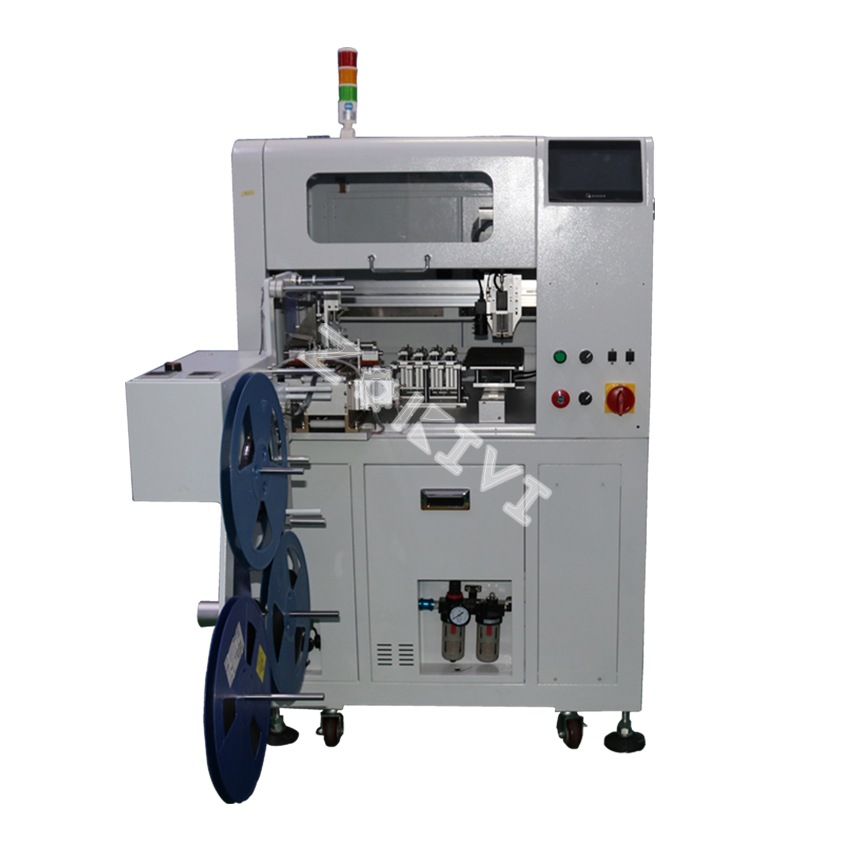

    ZH806-A1 Pallet/Tape IC Burning Test Robot

    Linear pallet/tape burning/testing/marking/packaging robot,

    Fast Burning Robot, 1-4 flip/press position, 1 hour capacity up to 1500 UPH/PCS (without calculating burning time)

    The new upgraded braided tape feeding and unloading system supports 8-32mm manual adjustable carrier bandwidth.

    Automatic alarm, abnormal condition or burning completion of the machine will automatically alarm reminder function, defective products placed in the exclusive receiving area.

    It can record the quantity of OK and NG of burning IC. This quantity can not be lost after power failure, which is convenient for production management.

    Burning is fast and easy to operate. Ideal choice for mass production customers.


    Details

    This product is mainly used for testing/packaging conversion/identification of IC (integrated circuit)


    IC TYPE:MCU,FLASH,EMMC,NAND FLASH,EPROM,Wait...

    IC ENCAPSULATIONSOP,SSOP,TSSOP,MSOP,QFP,QFN,BGA,TQFP,LQFP,Wait...

    IC PackingTrayTape


          technical specifications


    Product model

    ZH806-A1

    Machine architecture

    Straight line type

    Fastest speed

    1500±100UPH

     Accuracy of fetching and placing repetition

    +/-0.02mm

    Travel range

    X600mmY400mmZ50mm

    Machine size

    1400×800×1300mm

    weight

    130KG

    Soket Fetch and release mode

    Cylinder Pressure + Turn-over

    Suction nozzle

    Single suction nozzle rotatable

    Control system

    PLC

    Workstation

    0-4 Workstation optional

    Power/Gas Source

    220V,50Hz/0.5MPa

    Suitable for IC packaging

    SOP/QFN/BGA/QFP/...

    Suitable for programming

    Maxwell, Shuofei, Heqin, Songhan, Yilong, etc....


          Functional characteristics


    Pallet + Tape Burning Testing Robot, Fast Burning Support All IC Packages on the Market, Standard Image CCD Manual Alignment Coordinates。

    Support incoming packaging type:

    Input/Output/Entry/Output

    Input/Output/Entry/Output




    +
